Kabinettet er det samme som den initielle HTPC. Det samme er en harddisk, bluray brænderen og TV kort (DVB-C). Men ellers er alt andet udskiftet. Konfigurationen er som følger:

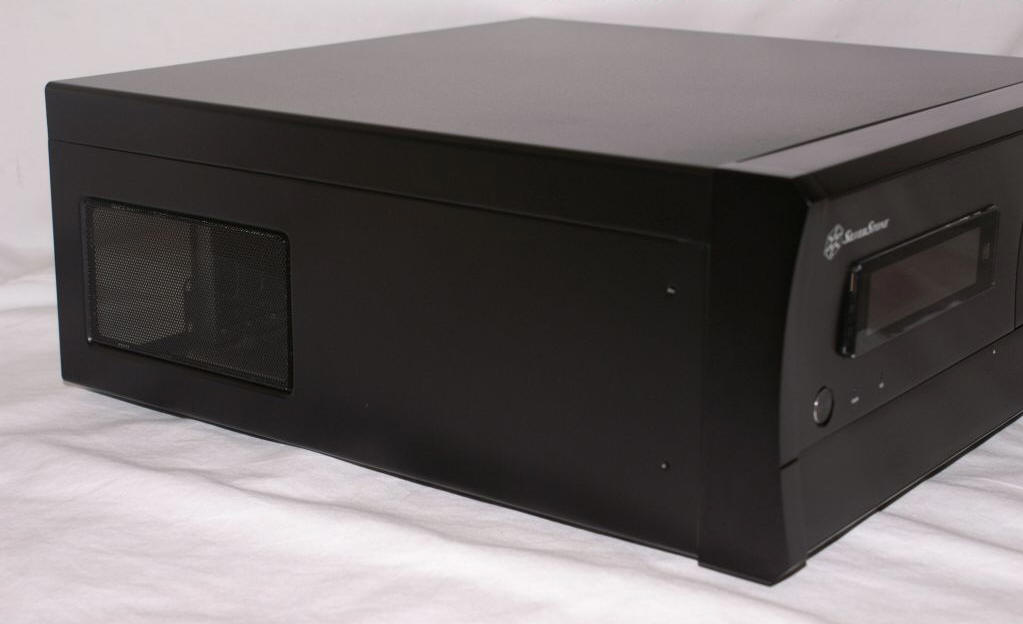

Kabinet
SilverStone Grandia GD01MX
Kabinettet kamuflerer at der er tale om en PC. Informativt display. Pænt med plads. 2 store lydsvage blæsere bagest.

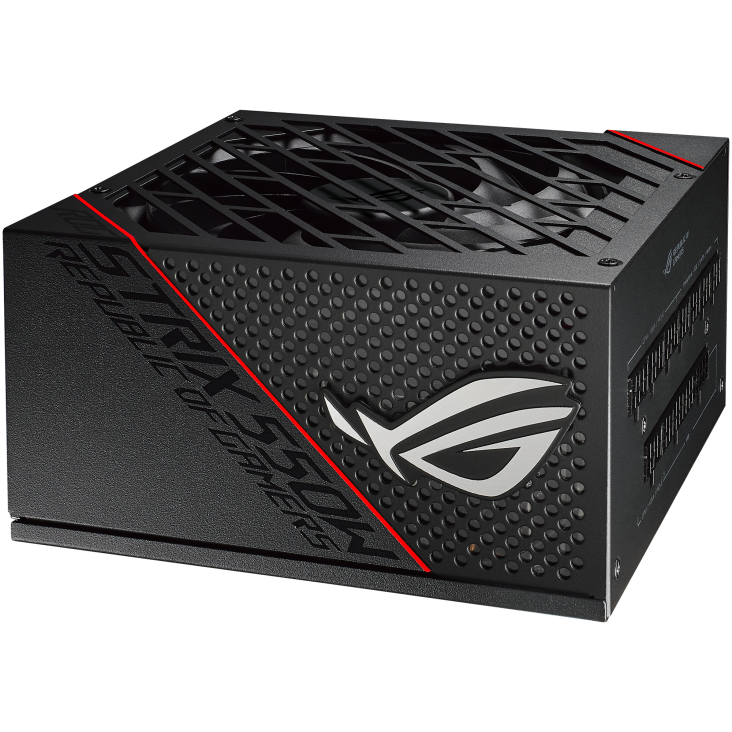

Power Supply (PSU)
ROG-STRIX-550G
The ROG Strix 550W Gold PSU brings premium cooling performance to the mainstream.
- ROG heatsinks have 2x more volume than traditional designs, resulting in significantly lower temperatures inside Strix PSUs. This extends the lifespan of components and allows 0dB operation for a longer duration than standard designs. The heatsinks are so effective that fan noise stays whisper quiet, even under full load.
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB Technology lets you enjoy light gaming in relative silence.
- An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.
- Cosmetic customization is enabled by a magnetic logo and stickers that help you reskin the visible side to your liking.
- Fully modular cables keep your rig neat and tidy.
- 10-year warranty included.

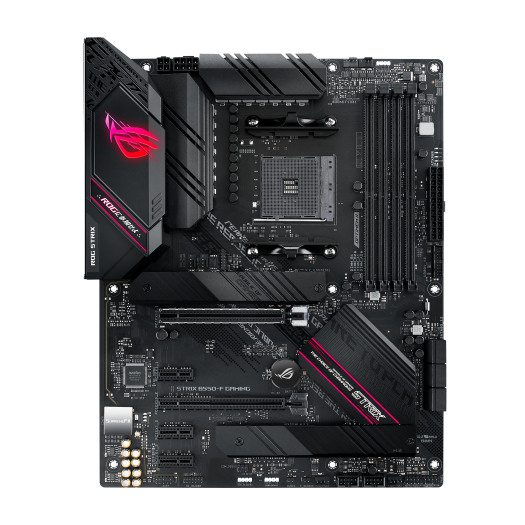

Bundkort
ROG STRIX B550-F GAMING
AMD B550 Ryzen AM4 Gaming ATX motherboard with PCIe® 4.0, teamed power stages, Intel® 2.5Gb Ethernet, dual M.2 with heatsinks, SATA 6 Gbps, USB 3.2 Gen 2 and Aura Sync RGB lighting
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Best gaming connectivity: PCIe® 4.0-ready, dual M.2, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort 1.2 output support
- Smooth networking: Intel® 2.5Gb Ethernet with ASUS LANGuard
- Robust power solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors
- Renowned software: Intuitive dashboards for UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds
- DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and SafeSlot
- Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and Addressable Gen 2 RGB header
- Industry-leading gaming audio: AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio

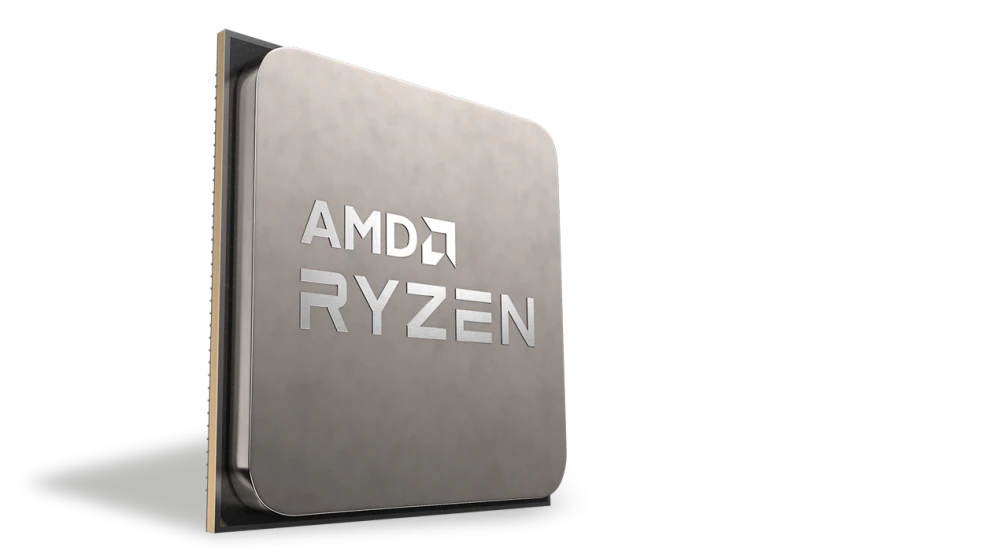

Processor
AMD Ryzen 5 5600G Wraith Stealth CPU
- Platform Boxed Processor
- Product Family AMD Ryzen™ Processors
- Product Line AMD Ryzen™ 5 5000 G-Series Desktop Processors with Radeon™ Graphics
- # of CPU Cores 6
- # of Threads 12
- Max. Boost Clock Up to 4.4GHz
- Base Clock 3.9GHz
- Total L2 Cache 3MB
- Total L3 Cache 16MB
- Default TDP 65W
- AMD Configurable TDP (cTDP) 45-65W
- Processor Technology for CPU Cores TSMC 7nm FinFET
- Unlocked for Overclocking Yes
- CPU Socket AM4
- Thermal Solution (PIB) Wraith Stealth
- Max. Operating Temperature (Tjmax) 95°C
- Launch Date 4/13/2021
- PCI Express® Version PCIe® 3.0
- System Memory Type DDR4
- Memory Channels 2
- System Memory Specification Up to 3200MHz
- Graphics Capabilities
- Graphics Model Radeon™
- Graphics Core Count 7
- Graphics Frequency 1900 MHz

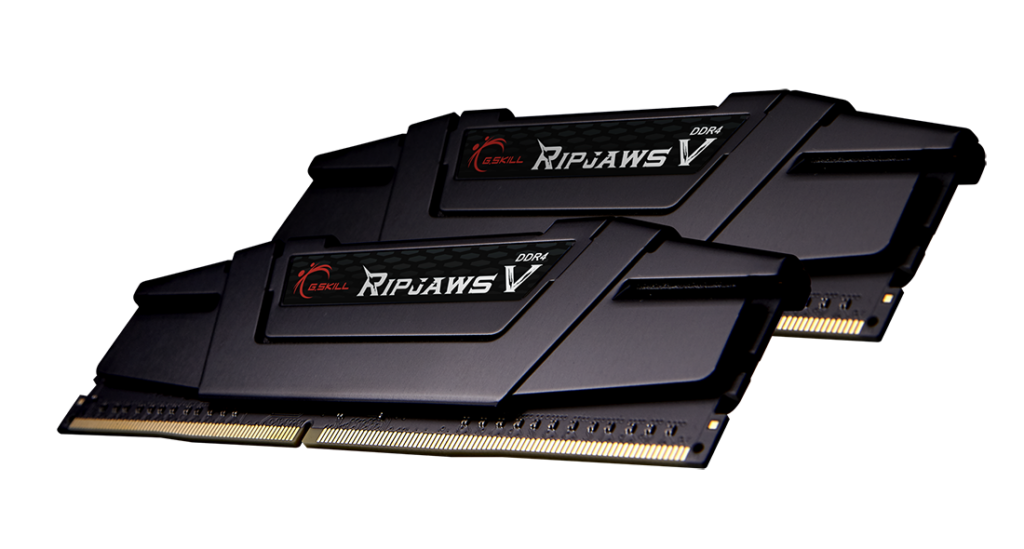

Memory
G.Skill Ripjaws V DDR4 16GB kit (F4-3200C14D-16GVK)
- Memory Type: DDR4
- Capacity:16GB (8GBx2)
- Dual Channel Kit
- Tested Speed (XMP): 3200 MT/s
- Tested Latency (XMP): 14-14-14-34
- Tested Voltage (XMP): 1.35V
- Registered/Unbuffered: Unbuffered
- Error Checking: Non-ECC
- SPD Speed (Default): 2133 MT/s
- SPD Voltage (Default): 1.20V
- Fan Included: No
- Warranty: Limited Lifetime
- Intel XMP 2.0 (Extreme Memory Profile) Ready

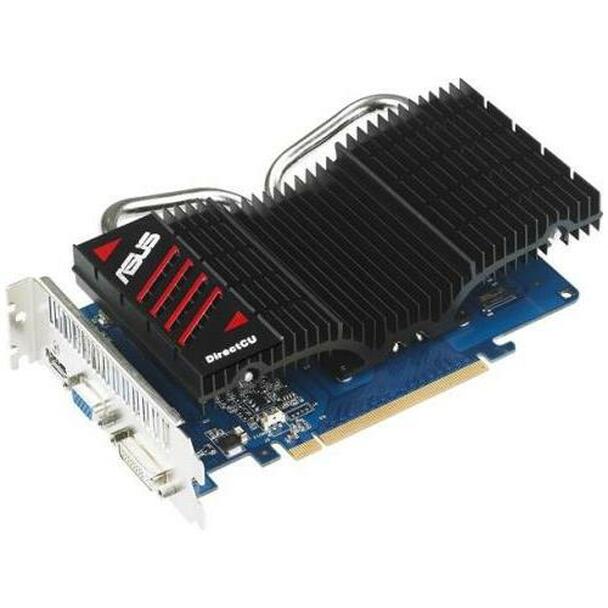

Grafikkort
ASUS GeForce GT 630 – 2GB GDDR3 RAM
- Enhedstype: Grafikkort – blæserløs
- Bus Type: PCI Express 2.0 x16
- Grafik engine: NVIDIA GeForce GT 630
- Kerne clock: 700 MHz
- CUDA kerner: 96
- Shader Clock: 1400 MHz
- Maksimum opløsning: 2560 x 1600
- Interfacer: DVI-I (dobbelt link), VGA og HDMI
- API-understøttet: DirectX 11
- Egenskaber: Native HDMI, ASUS 0-db termisk løsning, varmerørs køler, Nvidia CUDA teknologi, Nvidia PhysX-Ready, Super Alloy Power teknologi, kølelegeme med dobbelt åbning, ASUS DirectCU Silent Technology, HDCP

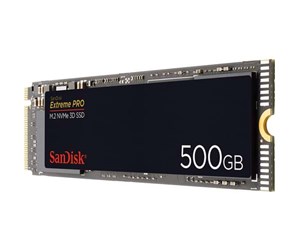

Harddisk (system)
SanDisk Extreme PRO M.2 – 500GB
- Enhedstype: Solid state drive – intern
- Kapacitet: 500 GB
- Model: M.2 2280
- Grænseflade: PCI Express 3.0 x4 (NVMe)
- Egenskaber: 3D NAND Technology, NVM Express (NVMe), nCache 3,0 teknologi
- Bredde: 21.84 mm
- Dybde: 80.52 mm
- Højde: 1.98 mm
- Vægt: 7.4 g
- SSD-udholdenhed: 300 TB
- Intern datahastighed: 3400 MBps (læs) / 2500 MBps (skriv)
- 4KB Random Read: 410000 IOPS
- 4KB Random Write: 330000 IOPS
- Interface: 1 x PCI Express 3.0 x4 (NVMe) – M.2 Card
- Kompatibel bås: M.2 2280

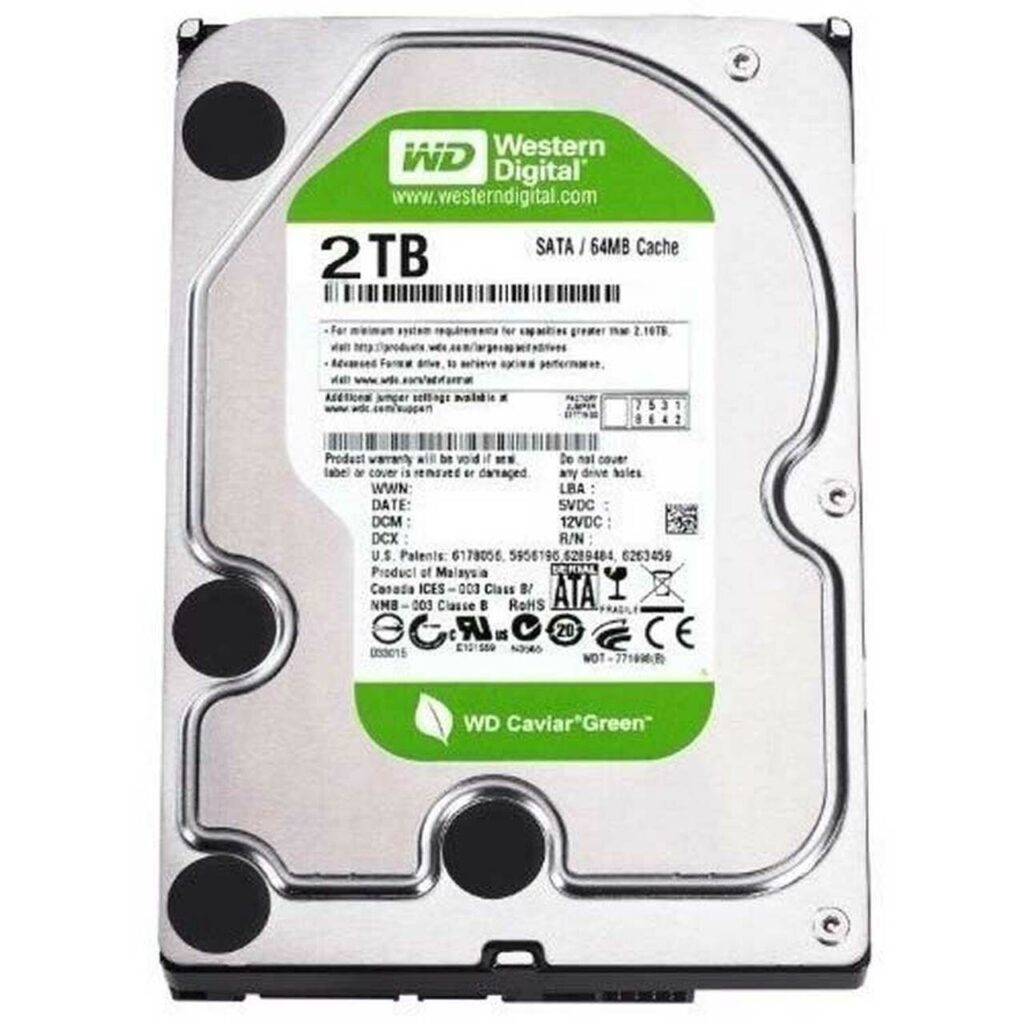

Harddisk (optagelser)
Western Digital 2TB
WD20EARX-00PASB0
2TB 7.2K RPM 64MB Cache SATA 3.5″ Hard Drive
Reduced power consumption
WD has reduced power consumption making it possible for our energyconscious customers to build systems with higher capacities and the right balance of system performance, ensured reliability, and energy conservation.
Cool and quiet
Drives with WD GreenPower Technology™ yield lower operating temperatures for increased reliability and low acoustics for ultra-quiet PCs and external drives.
IntelliPower
A fine-tuned balance of spin speed, transfer rate, and caching algorithms designed to deliver both significant power savings and solid performance. Additionally, WD Caviar Green drives consume less current during startup allowing lower peak loads on systems as they are booted.
IntelliSeek™
Calculates optimum seek speeds to lower power consumption, noise, and vibration.
NoTouch™ ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Interface: SATA 3 Gb/s
- Formatted capacity: 2,000,398 MB
- User sectors per drive: 3,907,029,168
- Data transfer rate (max)
- Buffer to host: 3 Gb/s
- Host to/from drive (sustained): 110 MB/s
- Cache (MB): 64
- Rotational speed (RPM): IntelliPower
Optisk drev
LG BH10LS30 Super Multi Blue
Key Features 10x BD-R Write Speed 16x DVD+/- Write Speed Serial ATA Technology BD/DVD/CD Read and Write LightScribe™ Disc Labeling
TV kort
Digital Devices Cine CT V6
DVB-C
For stadig at kunne optage 2 eller flere udsendelser, er dette kort med dobbelt tuner valgt. Desuden er det ret fleksibelt, idet man kombinere med CI modul eller andre tuner moduler, så man kan få op til 8 tunere i sin HTPC. Se en dansk test her.
Tastatur
Logitech diNovo Mini
Det tastatur er bare lille og genialt! Det er bare ikke ret holdbart. Underdimensioneret plastic.
